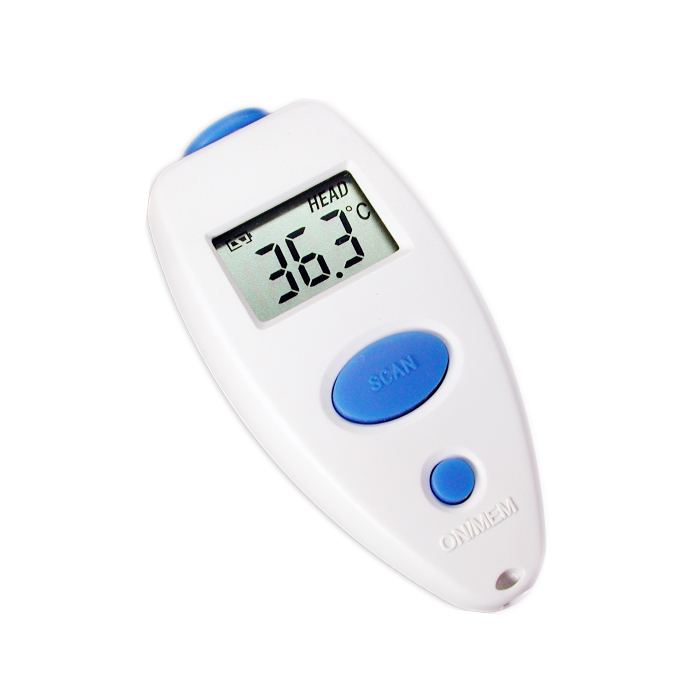

Non-Contact Forehead Thermometer

TH03F

  • Non-Contact for Hygiene and Comfort
  • One Second Measurement
  • Temperature Awareness Signal
  • Surface Mode
  • 25 Memories
  • °C/°F Switchable
  • TH03F
    Non-contact for Hygiene and Comfort
  • TH03F
    1 Second Measurement
  • TH03F
    Temperature Awareness Signal
  • TH03F
    Memory
  • TH03F
    °C/°F Switch Mode
  • TH03F
    Surface Mode

Introduction

    • Temperature measureme range:
      Foread mode:  34~42.2°C (93.2~108°F)
      Surface mode:  -22~80°C (-7.6~176°F)
    • Accuracy:
      Forehead mode: ±0.2°C (0.4°F) within 35~42°C (95~107.6°F), ±0.3°C (0.5°F) for other range.
      Surface mode: ±0.3°C (0.5°F) within  22~42.2°C (71.6~108°F), others ±4% or ±2°C (4°F) whichever is greater.
    • Operating temperature range:  10~40°C (50~104°F), 15%~85% RH
    • Storage temperature:  -20~50°C (-4~122°F), RH ≤85%
    • Transportation temperature:  Shall be less than 70°C, RH ≤95%
    • Response time (90%):
      Forehead mode: 1 sec.
      Surface mode: 0.6 sec.
    • Display mode:  Oral / Surface
    • Scale selection:  °C / °F
    • Display type:  Large LCD
    • Memory:  25 sets
    • Temperature Awareness Signal:  Beep Sounds
    • Battery type:  CR2032 * 1 pcs
    Note: Subject to upgrade based on purchasing agreement.

    ► Feature

    TH48F_scan-distance

    Scan Distance  1~3cm

    central-th03f

    Forehead Mode

    surface-th03f

    Surface Mode

    TH48F_1sec

    One Second
    Measurement



     ► Certificates




     ► Note

    This product is certified as a medical device in the European Union under the Medical Device Regulation 2017/745 by SGS CE1639, exclusively for the indication(s) of non-contact forehead temperature measurement. Other non-medical uses ascribed to this device are not within the scope of CE certification, and users should be aware product performance and/or safety has not been evaluated by SGS for those purposes.

Technology Support

    • 1.Why do I get different temperature for continuous measurement? Sometimes in normal, sometimes in lower, sometimes in higher temperature.+

      The user and thermometer need to adapt to ambient temperature. The rapid temperature change may cause the inaccurate measurement.

      User
      Before the measurement, please stay in a stable environment for 5 minutes and avoid exercise, bath for 30mins.

       Thermometer
      We recommend user to place thermometer indoor for 15 minutes to adapt to temperature and get the correct measurement.
    • 2.Does forehead thermometer need to maintain regularly?+

      clean_IFT

      Forehead thermometer is a health care product that needs maintenance, you could use soft cloth to wipe the  appearance. Never use benzene for cleaning and never submerge thermometer into water or any liquids. Probe lens is the most delicate part of thermometer, please use cotton swab with alcohol (70%) to wipe it.

      Follow the below instruction and video to clean the probe lens.
      ►Probe Lens Cleaning Video

      forehead_cleaning_e(320x180)

      1. Before using the cotton swap with 70% alcohol to wipe the lens, slightly flip the cotton swab to cut down the spare alcohol.
      2. If there is no 70% alcohol, use alcohol prep pad to soak the cotton swab.

        Important:  Do not use sharp pointed object to wipe the lens.
    • 3.Does summer and winter ambient temperature affect the measurement?+

      RADIANT INNOVATION ear thermometer compares ambient temperature and makes compensation. The measurement between 10°C~40°C (50°F~104°F) is the same, but the human body changes a little in different season and different environment. For example, the body temperature becomes hotter after exercise and hot shower.
    • 4.Does the forehead thermometer I bought only measure forehead temperature?+

      RADIANT INNOVATION forehead thermometer is designed for forehead temperature measurement. Besides, you may also scan other subject's exterior temperature. For example, you can measure baby's milk or bath water in "SCAN" mode.
