Introduction
-
- Temperature measureme range:
Ear / Forehead mode: 34~42.2°C (93.2~108°F)
Surface mode: -22~80°C (-7.6~176°F) - Accuracy:
Ear / Forehead mode: ±0.2°C (0.4°F) within 35~42°C (95~107.6°F), ±0.3°C (0.5°F) for other range.
Surface mode: ±0.3°C (0.5°F) within 22~42.2°C (71.6~108°F), others ±4% or ±2°C (4°F) whichever is greater. - Operating temperature range: 10~40°C (50~104°F), 15%~85% RH
- Storage temperature: -20~50°C (-4~122°F), RH ≤85%
- Transportation temperature: Shall be less than 70°C, RH ≤95%
- Response time (90%):
Ear mode: 1 sec.
Forehead mode: 1 sec.
Surface mode: 0.6 sec. - Display mode: Oral / Surface
- Scale selection: °C / °F
- Display type: Large LCD
- Memory: 9 sets
- Temperature Awareness Signal: Beep Sounds
- Battery type: CR2032 * 1 pcs
Note: Subject to upgrade based on purchasing agreement.► FeatureScan Distance ≤ 1CM

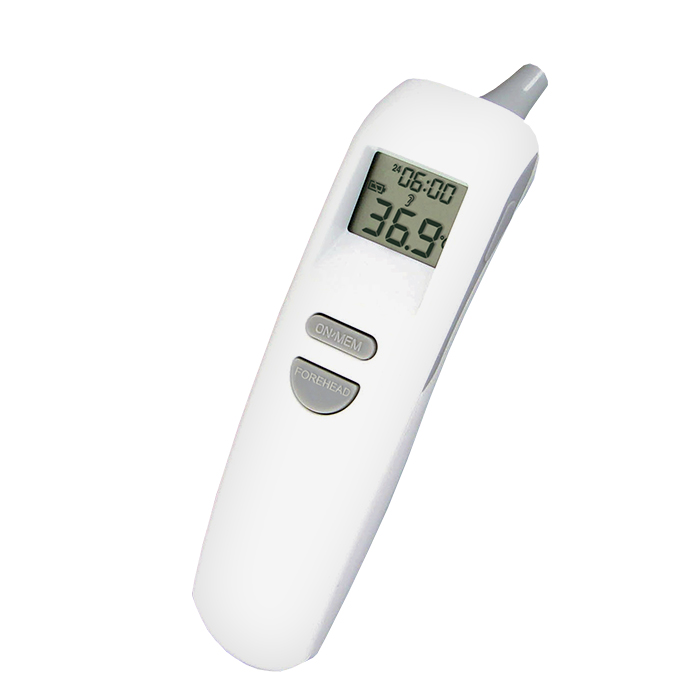

TH520 (3 key)
One Second Measurement
► Certificates
- Temperature measureme range:
Technology Support
-
-
-
-
1.How to open the battery cover to replace battery?+
Please use the incisive tool, for example:Pen tip…And so on. Inserts on battery cover's safely vent, under the effort presses, simultaneously uses the thumb downward to shove open the battery cover, then replaces the battery.
(Battery installation picture take TH809 for example. For other models, please refer to the user's manual.) -
2.My temperature measured in the right ear is different from that measured in left ear?+
The ear canal of both ears is not totally the same. Some people can get same temperature but most people could get 0.5 ~ 1.0°C different temperatures. It is recommended that you measure 3 times with the same ear. If the 3 measurements are different, select the highest temperature. -
3.Does forehead mode need to touch body?+
Please measure close to "the temples" about 0.5 cm distance.
Hold the thermometer 1 to 3 cm from "the central forehead".
Although the thermometer does not touch body, please also follow the instruction for clean and storage to keep accuracy. -
4.What is the standard for fever?+
Different site in the body and different thermometers may get different temperatures.
Recommended fever standards stated below:
Site Fever Standard Measuring Time Oral 37.5 °C 1 min. half - 2 min. Forehead 37.5 °C Several seconds Ear 38.0 °C Several seconds Axillary 37.0 °C 3 min. Rectal 38.0 °C 1 min. - 1 min. half
Source ► Centers for Disease Control , R.O.C.(Taiwan)
-
