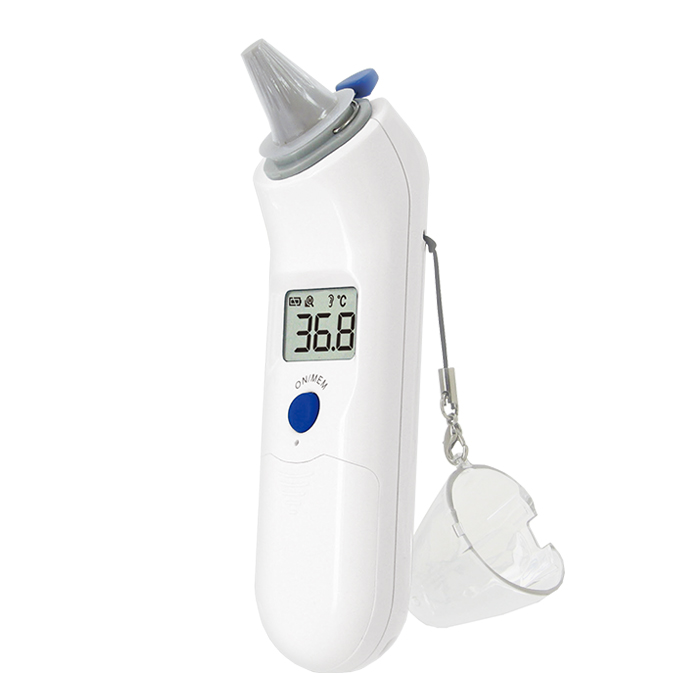

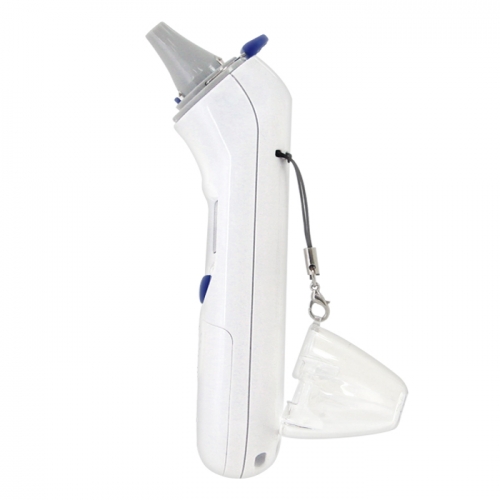

Infrared Ear Thermometer
THP59J(U)
- Special design for hospital use
- Durable probe for cover replacement up to 100,000 times
- Probe Cover for Hygiene
- Probe Cover Ejector
- Probe Cover Detector
- One Second Measurement
- Temperature Awareness Signal
- Built in UART Communication Interface (option)
- 25 memories
Introduction
-
- Temperature measureme range: 34~42.2°C (93.2~108°F)
- Accuracy: ±0.2°C (0.4°F) within 35~42°C (95~107.6°F), ±0.3°C (0.5°F) for other range
- Operating temperature range: 10~40°C (50~104°F), 15%~85% RH
- Storage temperature: -20~50°C (-4~122°F), RH ≤85%
- Transportation temperature: Shall be less than 70°C, RH ≤95%
- Response time (90%): 1 sec.
- Display mode: Oral
- Scale selection: °C / °F
- Display type: Large LCD
- Memory: 25 sets
- Disposable probe cover: Mold ring W/PE film cover
- Temperature Awareness Signal: Beep Sounds
- Battery type: CR2032 * 1 pcs
Note: Subject to upgrade based on purchasing agreement.► FeatureProbe Cover Ejector
Probe Cover Detector
Built in UART Communication Interface (option) / Neck Strip
One Second Measurement
► Certificates
(THP59J(U)/THP59JB) -
For RADIANT® Infrared Ear Thermometer "THXX9 series".

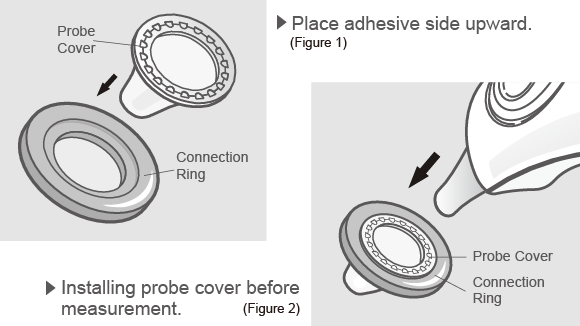

Do not reuse : Always use a clean, undamaged and new probe cover. Be sure ear canal is clean.
(1) Attach the probe cover to the connection ring.
(2) Align the center of probe cover with the center of probe.
(3) Push the connection ring until the click sound. This means the probe cover has been firmed tightly.► Probe Cover Loader (optional)Fill with probe covers
Pull the loader once to load a new probe cover
The loader will automatically bounce back. A new probe cover will be on the fixer.
Install a new probe cover
Technology Support
-
-
-
-
-
1.Why do I get different temperature for continuous measurement? Sometimes in normal, sometimes in lower, sometimes in higher temperature.+
The user and thermometer need to adapt to ambient temperature. The rapid temperature change may cause the inaccurate measurement.
User
Before the measurement, please stay in a stable environment for 5 minutes and avoid exercise, bath for 30mins.
Thermometer
We recommend user to place thermometer indoor for 15 minutes to adapt to temperature and get the correct measurement. -
2.What is the normal body temperature?+
A normal range for body temperature is 35.8°C~38.0°C (96.4°F~100.4°F) . Each person has different temperature, please contact qualified doctor for details.
Here are the normal body temperatures for reference:- Ear Temperature:35.7°C ~ 37.5°C
- Rectal temperature:35.7°C ~ 37.5°C
- Oral temperature:35.5°C ~ 37.5°C
- Armpit temperature:34.7°C ~ 37.3°C
Body temperature variations affected by age:- 0 ~ 2 years:36.4°C ~ 38.0°C
- 3 ~ 10 years:36.1°C ~ 37.8°C
- 11 ~ 65 years:35.9°C ~ 37.6°C
- > 65 years:35.8°C ~ 37.5°C
Source:
1. Chamberlain, J.M., Terndrup, T.E., New Light on Ear Thermometer Readings, Contemporary Pediatrics, March 1994.
2. Chamberlain, J.M., et al., Determination of Normal Ear Temperature with an Infrared Emission Detection Thermometer, Annals of Emergency Medicine, January 1995. -
3.What is the standard for fever?+
Different site in the body and different thermometers may get different temperatures.
Recommended fever standards stated below:
Site Fever Standard Measuring Time Oral 37.5 °C 1 min. half - 2 min. Forehead 37.5 °C Several seconds Ear 38.0 °C Several seconds Axillary 37.0 °C 3 min. Rectal 38.0 °C 1 min. - 1 min. half
Source ► Centers for Disease Control , R.O.C.(Taiwan) -
4.Can I measure without probe cover?+
If you bought a probe cover model, we recommend user to install probe cover before measurement base on hygienic principal. A thermometer measurement without probe cover might cause 1°C inaccuracy.
-
